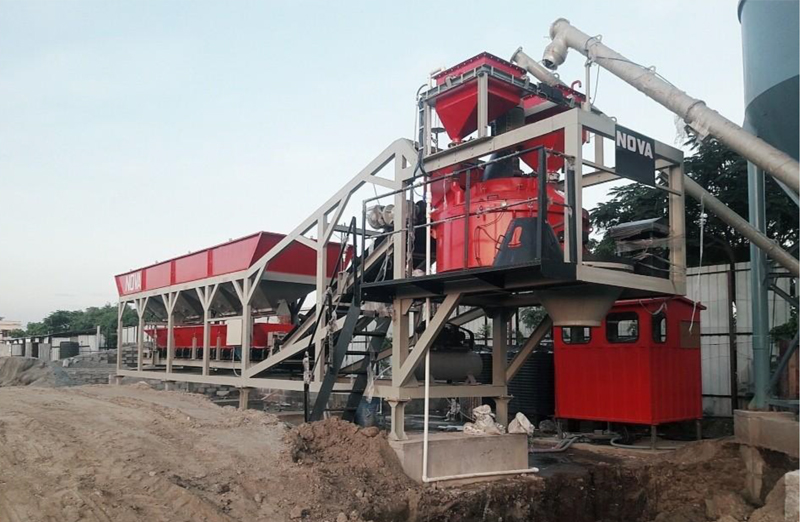

Planetary Pan Mixer Batching Plant 20 / 30 / 45 / 60 / Cum

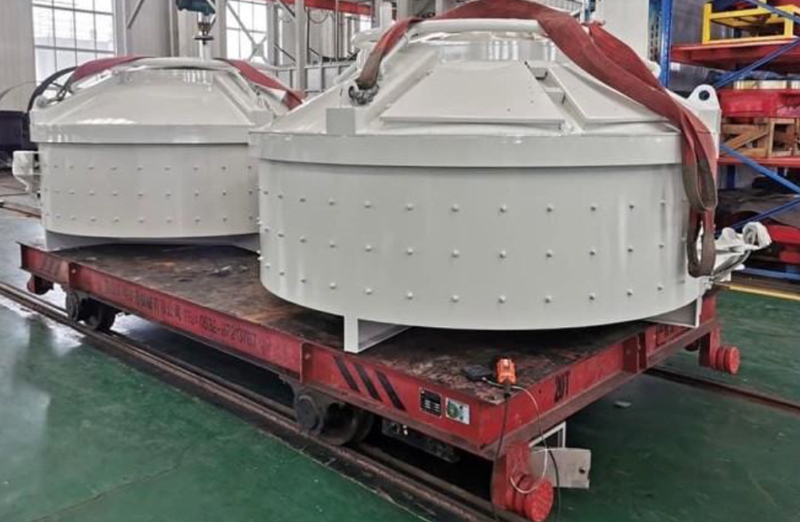

The Planetary Pan Mixer Batching Plant is a high-performance concrete mixing solution designed for projects that demand superior mixing quality and uniformity. Unlike conventional drum mixers, the planetary mixer’s unique motion ensures complete mixing of cement, aggregates, water, and additives, making it ideal for precast concrete, paver blocks, high-strength concrete, and architectural finishes.
Key Features
- Less maintenance with efficient output.
- Homogenous Mix due to design of Mixer.
- Electronic weighment of all components.
- Fully Automatic – Electronic with micro processor control.
- Ready to operate at site in minimum time limit.
- PLC & HMI with data storage (Removable Data Storage) for better accuracy & consistency.
Technical Specifications
| SPECIFICATION | UNIT | NCB-20 | NCB-30 | NCB-45 | NCB-60 |
|---|---|---|---|---|---|
| Type of Mixer | Planetary Pan Mixer | Planetary Pan Mixer | Planetary Pan Mixer | Twinshaft Planetary Pan | |
| Capacity | Lit. | 550 | 750 | 900 | 1250 |
| Compacted Output per Batch | Lit. | 375 | 500 | 750 | 1000 |
| No. of Aggregate | No. | 3 | 3 | 3 | 4 |
| Storage Cap. of Aggregate | Cum. | 18 | 24 | 34 | 40 |
| Aggregate Loading in Mixer | Belt Conveyor | Belt Conveyor | Belt Conveyor | Belt Conveyor | |
| Weighing Capacity | |||||
| Aggregate | Kg. | 900 | 1200 | 1800 | 2400 |
| Cement | Kg. | 250 | 300 | 450 | 750 |
| Water | Kg. | 150 | 200 | 300 | 400 |
| Additive | Ltr. | 10 | 10 | 10 | 10 × 2 |
| Power Requirement – Planetary Pan Mixer | HP | 20 | 30 | 40 | 60 |
| Weighing Belt Conveyor | HP | 7.5 | 10 | 10 | 25 |
| Screw Conveyor – Cement | HP | 7.5 | 7.5 | 10 | 20 |
| Water Pump | HP | 3 | 3 | 3 | 5 |
| Air Compressor | HP | 3 | 3 | 3 | 5 |
| Hydraulic Power Pack | HP | 3 | 3 | 3 | 5 |
| Total Connected Load | HP | 45.4 | 67.9 | 80.9 | 146.75 |
| DG Set Required | KVA | 82 | 125 | 125 | 180 |
| Aggregate Loading Height | Mt. | 2.7 | 2.7 | 3 | 3.5 |
| Discharge Height | Mt. | 1.6 | 3.4 | 3.4 | 3.4 |
