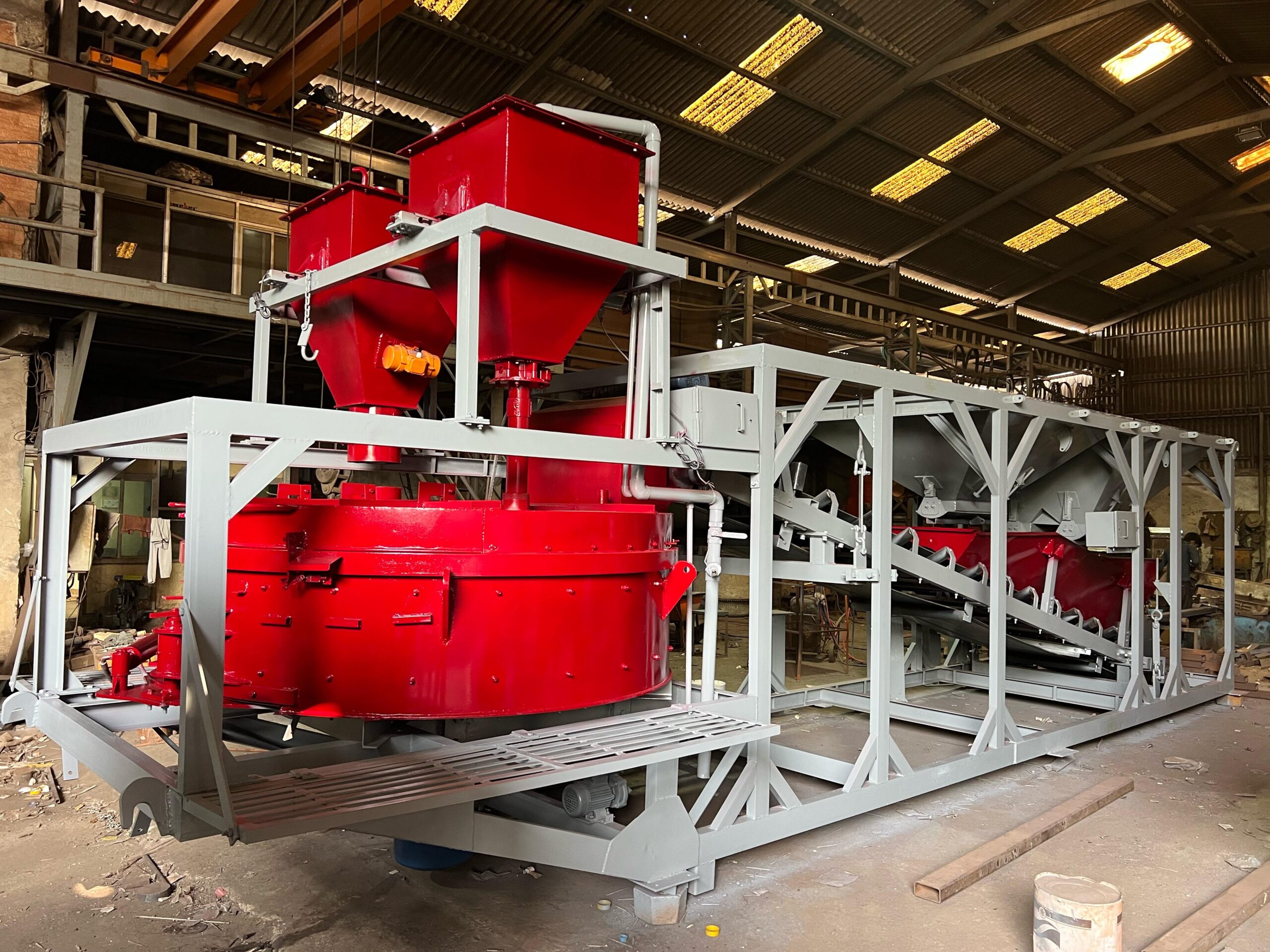

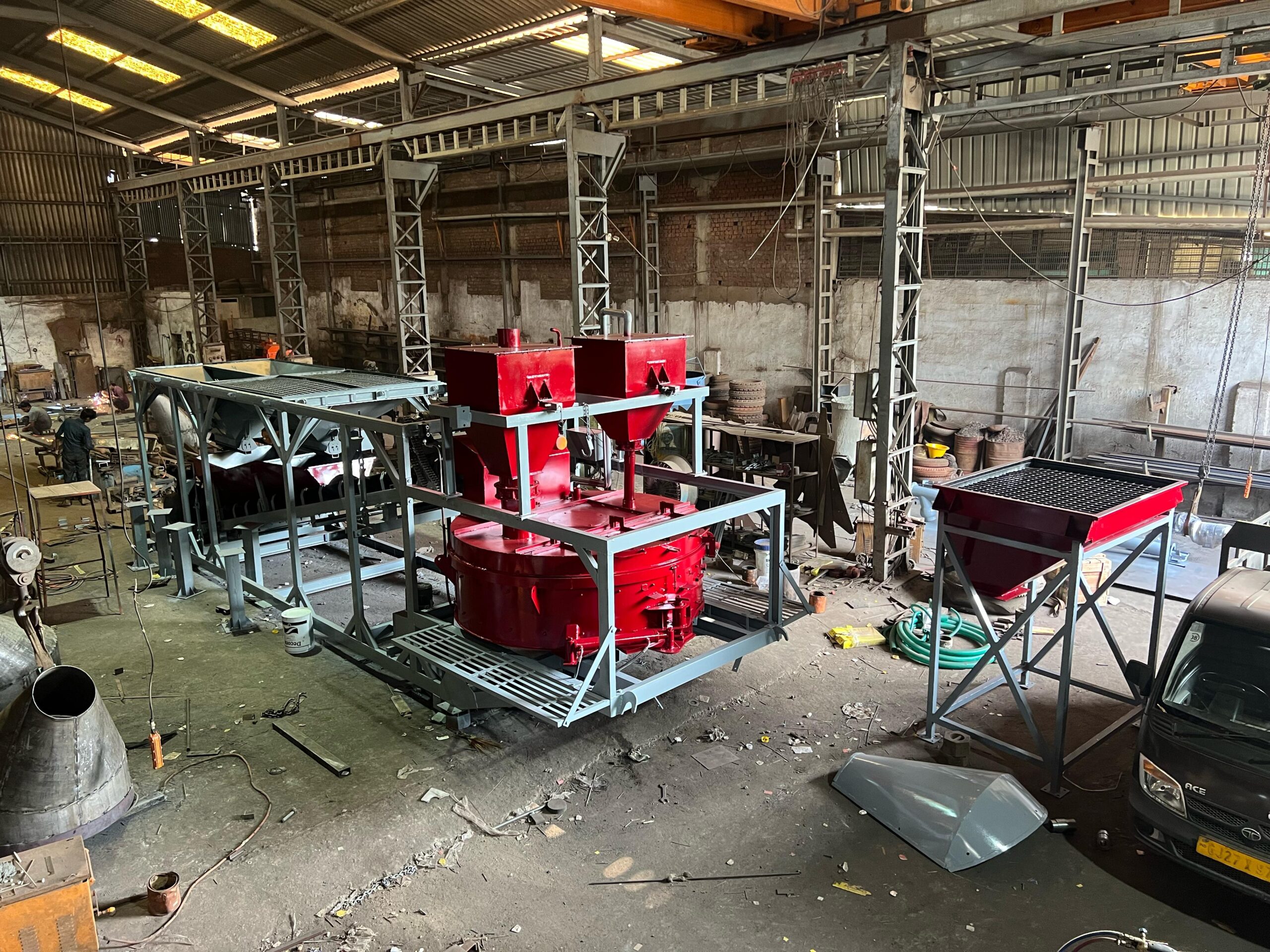

Inline bin pan type batching plant 20/30 cum
An Inline Bin Drum Type Batching Plant is a fully automatic concrete mixing system designed for large-scale and continuous concrete production. With capacities of 20, 30, and 60 cubic meters per hour (Cum/hr), it is ideal for infrastructure, commercial, and industrial projects requiring consistent quality and high output.
Key Features
- Inline Aggregate Bins: Multiple compartments for storing different aggregates, enabling continuous feeding without interruption.
- Drum Mixing Technology: High-efficiency reversible drum mixer ensures uniform mixing and optimal concrete consistency.
- Automatic Control Panel: PLC-based control system for precise weighing, mixing, and batching with minimal human intervention.
- Modular Design: Easy to transport and assemble at site, reducing setup time.
- Durable Construction: Heavy-duty frame and components designed to withstand tough site conditions.
- Low Maintenance: Simple drum mechanism reduces wear and tear, minimizing downtime and operational costs.
- Water & Additive Dosing: Automated dosing system ensures accurate water-cement ratio for consistent concrete quality.
Technical Specifications
| SPECIFICATION | UNIT | NCB-20 | NCB-30 |
|---|---|---|---|
| Type of Mixer | Pan Planetary Mixer | Pan Planetary Mixer | |
| Capacity | Lit. | 550 | 750 |
| Compacted Output per Batch | Lit. | 375 | 500 |
| No. of Aggregate | No. | 4 | 4 |
| Storage Cap. of Aggregate | Cum. | 14 | 20 |
| Aggregate Loading in Mixer | Belt Conveyor | Belt Conveyor | |
| Weighing Capacity – Aggregate | Kg. | 900 | 1200 |
| Weighing Capacity – Cement | Kg. | 250 | 300 |
| Weighing Capacity – Water | Kg. | 150 | 200 |
| Weighing Capacity – Additive | Ltr. | 10 | 10 |
| Planetary Pan Mixer | HP | 20 | 30 |
| Weighing Belt Conveyor | HP | 7.5 | 10 |
| Screw Conveyor – Cement | HP | 7.5 | 7.5 |
| Water Pump | HP | 3 | 3 |
| Air Compressor | HP | 3 | 3 |
| Hydraulic Power Pack | HP | 3 | 3 |
| Additive Pump | HP | 1 | 1 |
| Cement Vibrator | HP | 0.15 | 0.15 |
| Sand Vibrator | HP | 0.25 | 0.25 |
| Total Connected Load | HP | 45.4 | 57.9 |
| DG Set Required | KVA | 82 | 125 |
| Aggregate Loading Height | Mt. | 2.7 | 2.7 |
| Discharge Height | Mt. | 1.6 | 1.6 |
