Inline bin drum type batching plant 20/30 cum

1
2
1
4
2
3
5

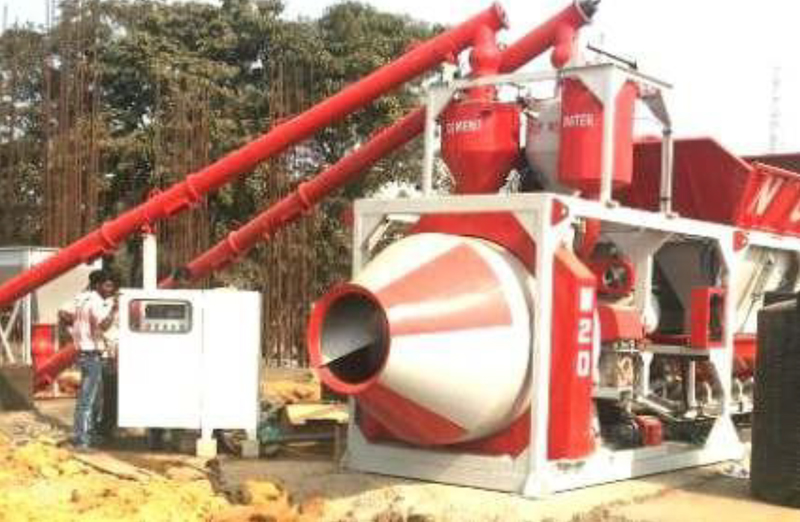

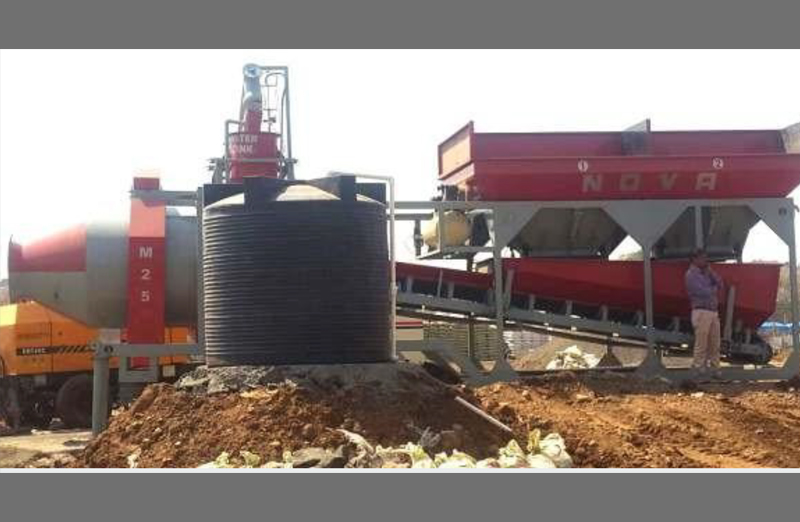

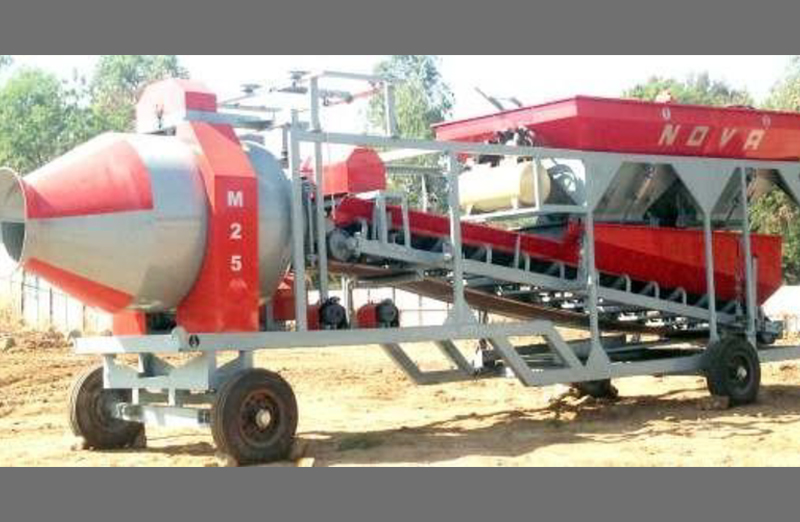

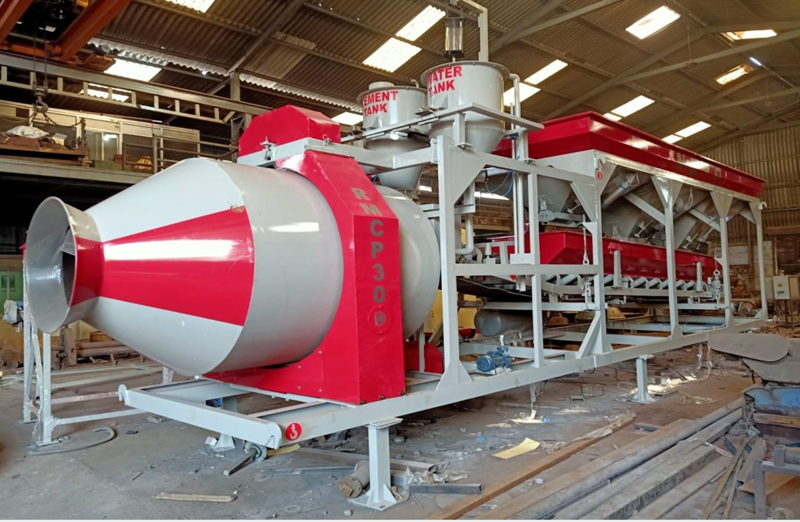

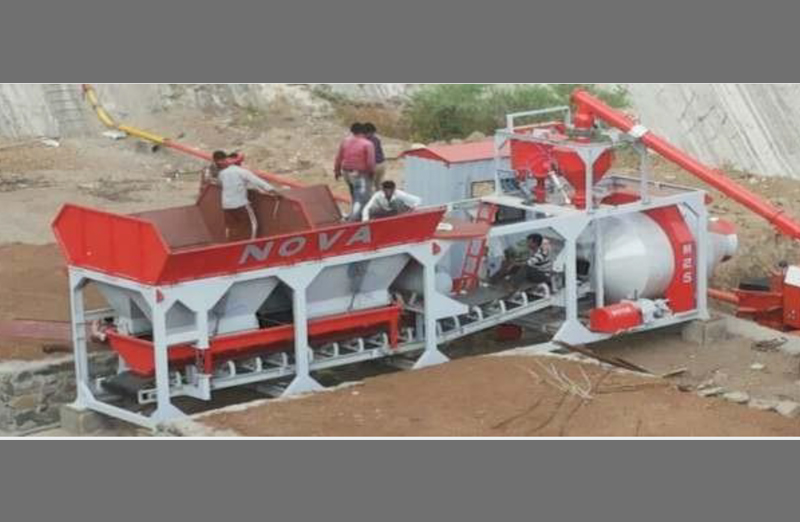

A Reversible Inline Bin Mobile Batching Plant is a compact, transportable concrete batching system designed for quick set-up and high-quality concrete production on site.

Key Features

  • Quick Installation: Requires only a hard, level surface—no major civil foundation.

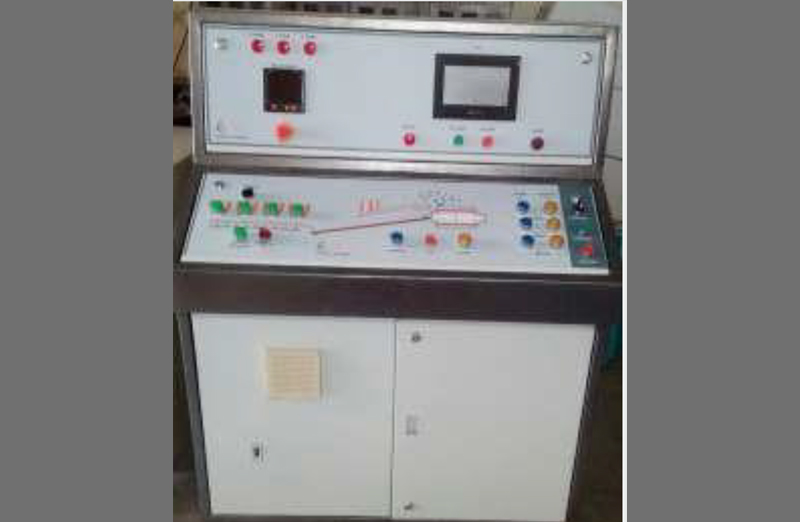

  • Fully Automatic Operation: PLC/SCADA controls with recipe storage and real-time printouts.
  • Reversible Drum Technology: Simple mechanism, low maintenance, and efficient mixing.

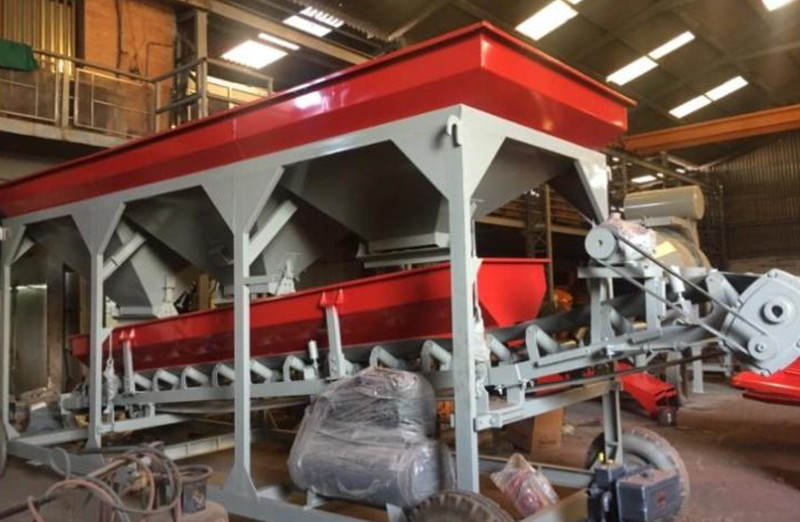

  • Inline Bin Layout: Space-saving, allows easy loading with front-end loader or conveyor.
  • Accurate Weighing: Load cells for aggregates, cement, and water deliver consistent concrete quality.
  • Mobility: Designed for rapid dismantling and transportation between sites.
  • Low Power Consumption: Reversible drum uses less energy compared to twin-shaft mixers.
  • Optional Add-ons: Fly-ash feeding, admixture dosing, moisture probes, and remote monitoring.

Technical Specifications

Models 20 M³ 30 M³
Batch Capacity 0.50 0.75
Output 20 M³/hr 30 M³/hr
Drum Discharge Height 1350 mm 1500 mm
Drum Diameter 1400 mm 1575 mm
Drum Length 2350 mm 2500 mm
No. of Bins / Hopper / Heap Capacity 3.5 Cum each 4 Cum each
No. of Conveyor Belt 1 No. 1 No.
Conveyor Motor 7.5 HP 7.5 HP
Mixer Motor 10 HP 12.5 HP
Water Tank 330 Ltr 400 Ltr
Water Pump 1 HP 1 HP
Cement Feeding Screw Conveyor Motor 5 HP 7.5 HP
Cement Screw Diameter 168 mm 219 mm
Fly Ash Screw Conveyor Motor (Optional) 5 HP 7.5 HP
Cement Hopper Vibrator 0.5 HP (Cosbin / WAM) 0.5 HP (Cosbin / WAM)
Sand / Crush Sand Hopper Vibrator 0.5 HP (Cosbin / WAM) 0.5 HP (Cosbin / WAM)
Ad-Mixture Unit 0.5 HP 0.5 HP
Printer (Optional) USB (Inbuilt) Inbuilt Inbuilt
Connected Load 35.5 HP 45.5 HP
Foundation Plate (20 mm) 6 Nos 6 Nos
Conveyor Belt Width 600 mm 600 mm
Air Compressor 3 HP (Indo Air / Fauji) 3 HP (Indo Air / Fauji)
